TVI/CVI/AHD/Analog Video + Power (12/24DVC) Over UTP Cable Cat5E/6 Extender 200 - 400m

  • TVI/CVI/AHD/Analog Video + Power (12/24DVC) Over UTP Cable Cat5E/6 Extender 200 - 400m

  • MODEL:G-TCAP-UT/R

  • Support 1CH Forward 1080P/960P/720P TVI/CVI/AHD/Analog Video+DC power over single UTP Cat5E/6 transmission

Detail Specifications Other
G-NET G-TCAP-UT/R is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective unshielded Twisted Paired (UTP) cable. The G-TCAP-UT/R is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.The G-TCAP-UT/R has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Used in pairs, the G-TCAP-UT/R eliminates costly and bulky coaxial cable.The superior interference rejection and low emissions of the G-TCAP-UT/R allow video & power signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The G-TCAP-UT/R is built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.


Features
•Real-time transmission over UTP cat5e/6
•Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
•Color video max  up to 190m (623ft) for HD-TVI 720P camera
•Color video max  up to 190m (623ft) for HD-TVI 1080P  2MP camera
•Color video max  up to 200m (656ft) for HD-TVI 3MP camera
•Color video max  up to 440m (1443ft) for HD-CVI 720P camera
•Color video max  up to 230m (754ft ) for HD-CVI 1080P  2MP camera
•Color video max  up to 230m (754ft ) for HD-CVI 4MP camera
•Color video max  up to 320m (1049ft) for HD-AHD 720P camera
•Color video max  up to 320m (1049ft) for HD-AHD 960P  camera
•Color video max  up to 250m (820ft) for HD-AHD 1080P  2MP camera
•Color video max  up to 180m (590ft) for HD-AHD 3MP camera Color video max  up to 200m (656ft ) for HD-AHD 4MP camera Color video max  up to 200m (656ft ) for HD-AHD 5MP camera
•Color video max  up to 400m (1312ft) for Analog  camera
•Power signal  up to 200m (656ft)
•Male BNC with extended 5.9inch (150mm) mini-coax pigtail
•RJ45 Jack for UTP cable
•Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
•Wave Filter Design, Anti-Static Design
•Lightning protection design Grade: III
•60 dB crosstalk and noise immunity
•Exceptional interference rejection
•ABS engineering plastic housing

Detail
※Support 1CH Forward 1080P/960P/720P TVI/CVI/AHD/Analog Video+DC power over single UTP Cat5E/6 transmission
※Video transmission distance:0-400m by Cat5E/6(Speciifc distance pls refer to the datasheet)
※Power transmission distance:0-200m by Cat5E/6(Speciifc distance pls refer to the datasheet)
※Receiver Power input:DC12-24V/1-2A,Transmitter Power output:DC12-/1-2A
※Transmitter Video input:
        1xBNC connector(Male)
        Power output:1xDC power plug(Male DC5.5/2.1mm)
※Receiver Video output:
        1xBNC connector(Male)
        Power input:1xDC power plug(Female DC5.5/2.1mm)
※Note:We do not offer the power adapter for Receiver,customer need to choose the power adapter according to their camera power requirement

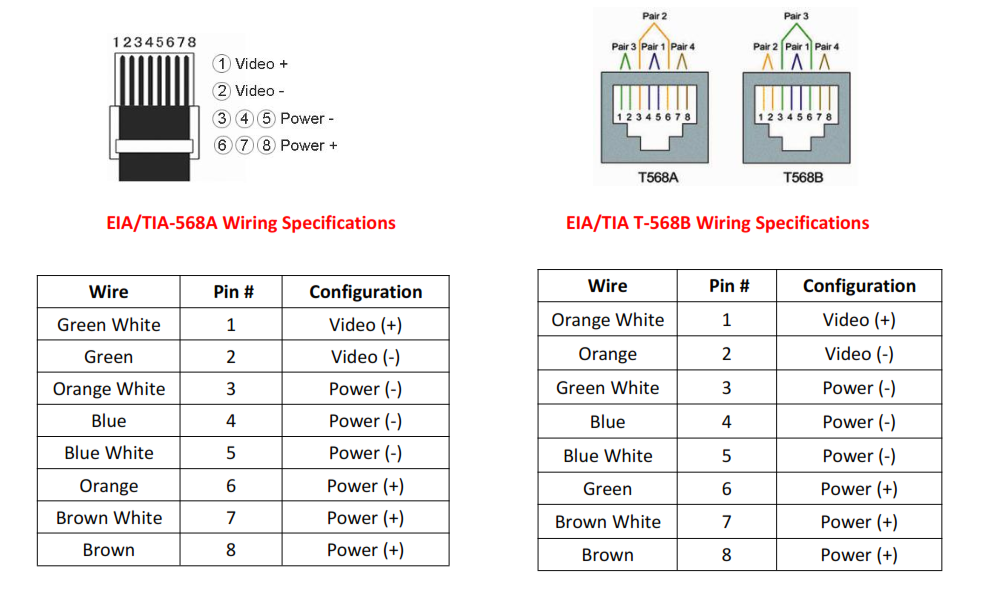

Wire and Cable Recommendations

The G-TCAP-UT/R is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG..Individually shielded pairs should be avoided, as they reduce the operating range of the systems drastically. Multi-pair cable (25-pair or more) with an overall shield are acceptable. Video signals can coexist in the same wire bundle as telephone, datacom, or low-voltages power circuits. While video may be routed through telephone punch-down block terminals, any bridge-taps, also called T-taps and any resistive, capacitive or inductive devices MUST BE removed from the pair. For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.



Model

 G-TCAP-UT/R
ProductName TVI/CVI/AHDVideo&PowerOverUTPCAT5E/6Extender
Video Video Format HD-TVI/CVI/AHD/CVBS
OperatingFrequency DCto42MHz
MaxDistance HD-CVI 720P:440m(1443ft) HD-CVI 1080P 2MP:230m(754ft) HD-CVI 4MP:230m(754ft)
HD-TVI 720P:190m(623ft) HD-TVI 1080P 2MP:190m(623ft) HD-TVI 3MP:200m( 656ft)
HD-AHD720P:320m(1049ft) HD-AHD960P:320m(1049ft) HD-AHD1080P2MP:250m(820ft) HD-AHD3MP:180m(590ft) HD-AHD4MP:200m(656ft) HD-AHD5MP:200m(656ft)
AnalogCamera:400m(1312ft)
Common-mode/Differential-moderejection 15KHzto42MHz 60dBtyp
Impedance Coax:MaleBNC(75Ωunbalanced)
UTP:RJ45(100Ωbalanced)
Attenuation 1.5dBtypMax
Wire Type Network Wiring OneUnshieldedTwistedPair 24-16AWG(0.5-1.31mm)
Category Type CAT5E/6
Impedance 100±20ohms
DC Loop Resistance 52 ohms per 1,000ft(18 ohms per 100m)
Differential Capacitance 19pF/ft max (62 pF/m max)
Power Power Input(Receiver) DC12-24V/1-2A
Power Output(Transmitter) DC12V/1-2A
Power transmission 0-200m,via UTP CAT5E/6. Specific distance please refer to above Power Power Transmission Distance Reference
Consumption <1W
Connector Transmitter Videoinput:BNCconnector(Male)
Poweroutput:DCpowerplug(MaleDC5.5/2.1mm)
Receiver Video output:BNC connector(Male)
Powerinput:DCpowerplug(FemaleDC5.5/2.1mm)
  Surge Protection renewable solid state surge protection
Video Input 2KV(commonmode),10/700usIEC61000-4-5/1955(GB/T1726,5-1999)
Video Output 2KV(differentmode),10/700usIEC61000-4-5/1955(GB/T1726,5-1999)
Mechanical Housing ABS engineering plastic
Body Color Black
Dimensions(L*W*H) 60.4*29*20.4mm(BNC connector & cable excluded)
Net Weight 60g
Environmental Operating Temperature -20º~70ºC
Storage Temperature -40º~150ºC
RelativeHumidity 0~95%(non-condensing)
