8CH Forward Contact Closure(Normal Open), Single Fiber, Multi-Mode, 1310nm, 2-20KM, FC
MODEL:G-8K-FC2T/R & G-8K-FC20T/R

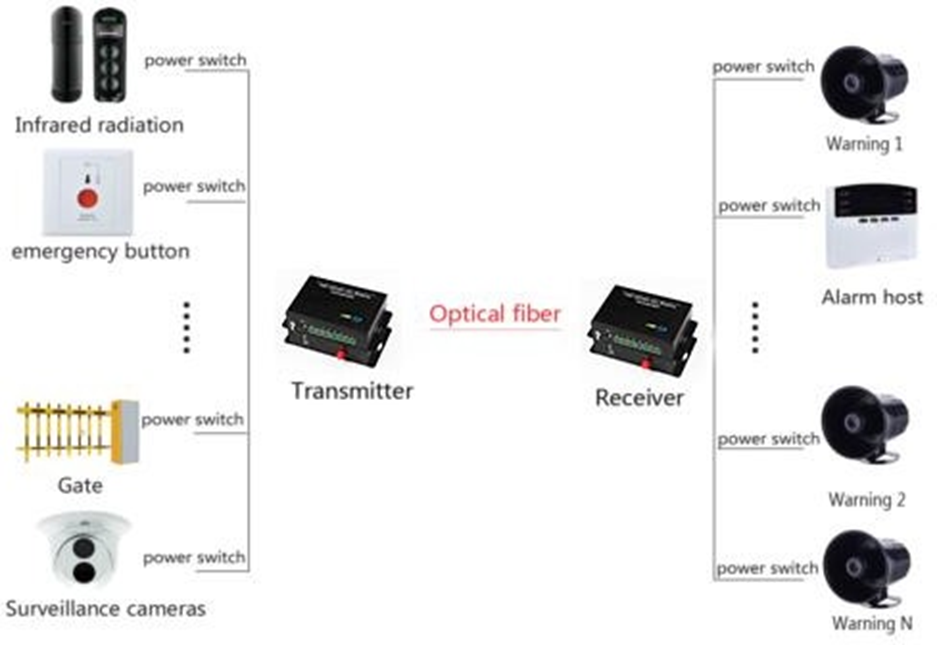

G-NET G-8K Contact Closure to Fiber converter supports 8 channel forward dry contact closure or TTL data input signal up to 100km by single-mode single fiber or 2km by multi-mode single fiber. It is widely used in Alarm Event Triggering, Building Automation and Environmental Control Systems, Fire & Alarm Systems, Gate control, PIR signal Transmission, Traffic Signal Control Equipment, etc.

Detail Specifications Other

Features

Support Point-to-Point connection
Support 8 Channel Forward Contact Closure or TTL data over single fiber up to 100km(Single-Mode) or 2km(Multi-Mode)
LED indicators display the working status,supporting simple trouble shooting
No EMI or RFI and no ground loops
Plug and play, no configuration required
Desktop or wall mounted,easy to install and use

Specifications

Contact Closure
Number of Channels	8 Channel Forward
Connector	Terminal Block
Data Formats	Contact Closure, TTL
Data Rate	DC to 200Kbps
Bit Error Rate	< 10E-9
Optical
Fiber mode	Single-mode or Multi-mode,Single fiber
Connector	Simplex FC/UPC or SC/UPC or ST/UPC
Wavelength	1310nm,1550nm
Transmission Distance	0-100Km(Single mode),0-2km(Multi mode)
Power
Power Adapter Input Voltage	AC 100-240V (External Power Adapter)
Power Adapter Output Voltage	DC 5V
Mechanical
Case	Metal
Cooling way	Natural cooling,fanless design
Installation	Desktop or Wall Mounted
Dimension	133X80X32mm (LxWxH)
Environmental
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-40°C ~ +85°C
Relative Humidity	0-95% (no condensation)
MTBF	>100,000 hours

Ordering Information

Model	Description
G-8K-FC2T/R	8CH Forward Contact Closure(Normal Open),Single Fiber,Multi-Mode,1310nm,2KM,FC
G-8K-FC20T/R	8CH Forward Contact Closure(Normal Open),Single Fiber,SIngle-Mode,1310nm,20KM,FC
