1 port 10/100/1000M POE Switch Series

  • 1 port 10/100/1000M POE Switch Series

  • MODEL:G-PMC-1GX1GP-SFP

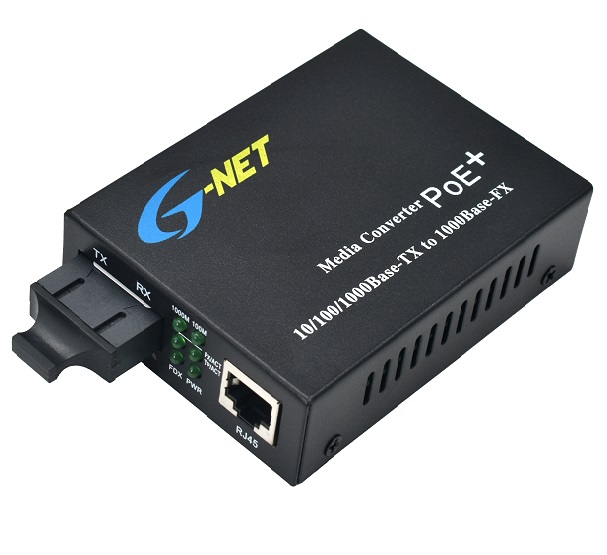

  • G-PMC-1GX1GP-SC20S
    G-PMC-1GX1GP-SC20SA/B

Detail Specifications Other
G-NET G-PMC-1GX1GP series unmanaged Fast Ethernet POE Media Converter provides 1x10/100/1000Base-TX POE port and 1X1000Base-FX fiber port.The POE port supports IEEE802.3af/at PoE standards,each POE port can max supply up to
30W power.It can automatically detect and supply power for the IEEE 802.3af/at compliant Powered Device(PD),like IP camera, IP phone, wireless AP,etc.To the connected devices which not support PoE,it will auto stop supplying power.It also supports IEEE 802.3,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3u,IEEE 802.3x standard with
10/100/1000M,full/half-duplex,and MDI/MDI-X auto negotiation,All ports support wire speed switch.It is a reliable and economic choice for your security system,electronic power system and traffic system.




Features
▪Support 1x10/100/1000Base-TX POE port and 1X1000Base-FX Fiber port
▪Support IEEE 802.3,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3u,IEEE 802.3x
▪Support IEEE802.3af,each port power supply:15.4W(Max)
▪Support IEEE802.3at,each port power supply:30W(Max)
▪Each PoE port supports to auto detect and supply power for the IEEE 802.3af/at compliant PD,auto power supply/power cutting
▪POE Pin Assignment:1/2+,3/6-(End-Span)
▪Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard
▪Plug and play,10/100/1000M,Full/Half duplex mode,non-blocking forwarding,MDI/MDI-X auto negotiation
▪Switching mode: Store and Forward
▪LED indicators monitor working status,supporting simple trouble shooting
▪Fanless design,natural cooling
▪Desktop,easy to install and use
▪External Power Supply,DC 52V,1.25A inputs


G-PES-1GX1GP series products include

Model Description
G-PMC-1GX1GP-SFP 1X10/100/1000Base-TX POE PSE+1X1000Base-FX SFP,total power:30W
G-PMC-1GX1GP-SC20S
1X10/100/1000Base-TX POE PSE+1X1000Base-FX,dual fiber,20KM,SC,total power:30W
G-PMC-1GX1GP-SC20SA/B
1X10/100/1000Base-TX POE PSE+1X1000Base-FX,single fiber,20KM,SC,total power:30W



Specification

Standard IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX
IEEE802.3x flow control
IEEE 802.3af/at
Network Medium 10BASE-T: Cat3,4,5 UTP(≤100 meters)
100BASE-TX: Cat5 UTP or better(≤100 meters)
1000BASE-TX: Cat5E UTP or better(≤100 meters)
Flow Control Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard
Fiber Optic 1x1000Base-FX
POE Description POE Port:1x10/100/1000Base-TX RJ45 PSE port
POE Standard:IEEE802.3af, IEEE802.3at
Power Pin Assignment:1/2+,3/6-
Power Output:
Max. 15.4 watts per POE port (IEEE 802.3af)
Max. 30 watts per POE port(IEEE 802.3at)
Transmission Distance Twisted pair: 0-100m(CAT5/CAT5e)
Fiber port:0-120km
Power Requirements External Power Adapter
Input Voltage:AC 100-240V,50/60Hz
Output Voltage:DC 52V-1.25A
Indicator PWR,FX,TX,Link/Act
Mechanical Case: Metal
Cooling way: Natural cooling,fanless design
Dimension: 93x70x25mm(LxWxH)
G.W: 0.8Kg
Installation:Desktop
Environmental Working Temperature: 0°C to 50°C
Storage Temperature:-40°C to +70°C
Working Humidity: 10%～90% (non-condensing)
Storage Humidity: 5% ~ 90%(non-condensing)
MTBF 100,000 hours

G-PES-1GX1GP series products include

Model Description
G-PMC-1GX1GP-SFP 1X10/100/1000Base-TX POE PSE+1X1000Base-FX SFP,total power:30W
G-PMC-1GX1GP-SC20S
1X10/100/1000Base-TX POE PSE+1X1000Base-FX,dual fiber,20KM,SC,total power:30W
G-PMC-1GX1GP-SC20SA/B
1X10/100/1000Base-TX POE PSE+1X1000Base-FX,single fiber,20KM,SC,total power:30W
