Introduction
G-NET G-IMC-1FX1TP-SC20SA/B is a smart industrial unmanaged PoE Ethernet Switch.It supports 1x10/100Base-TX POE port and 1x100Base-FX SC Fiber port.The POE port support Power-over-Ethernet(PoE) function.The switches are classified as power source equipment (PSE), and when used in this way, the switches enable centralization of the power supply, providing up to 30 watts of power per port and reducing the effort needed for installing power.The switches can be used to power IEEE802.3af/at standard devices (PD), eliminating the need for additional wiring.
G-IMC-1FX1TP-SC20SA/B adopt industry standard design, IP40 protection, rugged high- strength Aluminum alloy case,redundant dual 10-58VDC power input.The switches also support IEEE 802.3,IEEE 802.3u,IEEE 802.3i standard with 10/100M, full/half-duplex, and MDI/MDI-X auto negotiation.Besides, -40 to 85°C wide operating temperature,can meet most kinds of harsh Industrial environment requirement,providing reliable and economic solution for your industrial Ethernet network.
Ordering information
|
Model |
Description |
|
G-IMC-1FX1TP-SC20S |
Unmanaged 1x10/100Base-TX POE+1x100Base-FX,SC,Dual Fiber,SM,20KM |
|
G-IMC-1FX1TP-SC20SA/B |
Unmanaged 1x10/100Base-TX POE+1x100Base-FX,SC,Single Fiber,SM,20KM |
|
G-IMC-1FX1TP-SFP |
Unmanaged 1x10/100Base-TX POE+1x100Base-FX SFP,without SFP transceiver |
Features
- Support 1x100Base-FX SC fiber port and 1x10/100Base-TX POE port
- Support IEEE 802.3,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x - Support IEEE802.3af,maximum 15.4W power supply - Support IEEE802.3at,maximum 30W power supply
- Plug and play,10/100M,Full/Half duplex mode,MDI/MDI-X auto negotiation
- Industrial lightning chip design,up to 8KV effective against lightning,avoiding electrostatic induction
- Redundant dual 10-58VDC power input,support overload protection,reverse connection protection
- Industrial grade design,-40 to 85°C wide operating temperature
- IP40 protection grade,DIN-Rail mounted installation
- Rugged high-strength Aluminum alloy Case
- Fanless design,natural cooling
Specification
Standard - IEEE 802.3 - IEEE 802.3i - IEEE 802.3u - IEEE 802.3x - IEEE 802.3 af/at
Switch Properties
- Switching Capacity: 1Gbps
- Packet forwarding rate: 0.744Mpps
- MAC Address Table: 1K - Packet Buffer Size: 512K - Delay time: <3μs
- Switching mode: Store and Forward
Fiber Port
- single mode,single fiber,SC
POE Port
- 1X10/100Base-TX POE PSE(RJ45)
- 10Base-T/100Base-TX Self-adaption,Full/Half duplex mode,MDI/MDI-X auto negotiation - IEEE802.3af max 15.4w,IEEE802.3at max 30w - POE Pin Assignment:1/2(+),3/6(-)
Transmission Distance
- Twisted pair: 0-100m(CAT5e/CAT6)
- Multi mode fiber: 0-2km
- Single mode fiber: 0-20km
Power Requirements
- Input Voltage: Redundant Dual 10-58VDC inputs
- Connector: 6 bit 5.08mm Removable Termina Block
- No load consumption: <3W
- Protection:Overload protection/Reverse Connection, Protection/Redundancy prodection
Indicator
- Power indicator: PWR
- Port indicator: Link/ACT
Mechanical
- Case: Aluminum alloy
- IP Rating: IP40 protection
- Cooling way: Natural cooling,fanless design - Dimension: 143x104x48mm(LxWxH) - Weight: 0.85Kg
- Installation: DIN-Rail mounted
Environmental
- Operating Temperature: -40°C to +85°C
- Storage Temperature:-40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
Industrial Standard
- Safety: UL508
- EMI:FCC CFR47 Part 15,EN55022/CISPR22,Class A
- EMS: IEC61000-4-2(ESD) ±8kV(contact),±15kV(air),IEC61000-4-3(RS) 10V/m(80MHz-2GHz), IEC61000-4-4(EFT)
- Power Port: ±4kV,Data Port:±2kV, IEC61000-4-5(Surge)
- Power Port:±2kV/DM,±4kV/CM,
- Data Port: ±2kV EC61000-4-6(CS) 3V(10kHz-150kHz),10V(150kHz-80MHz)
- Machinery: IEC60068-2-6(Vibration),IEC60068-2-27(Shock)IEC60068-2-32(Free Fall)

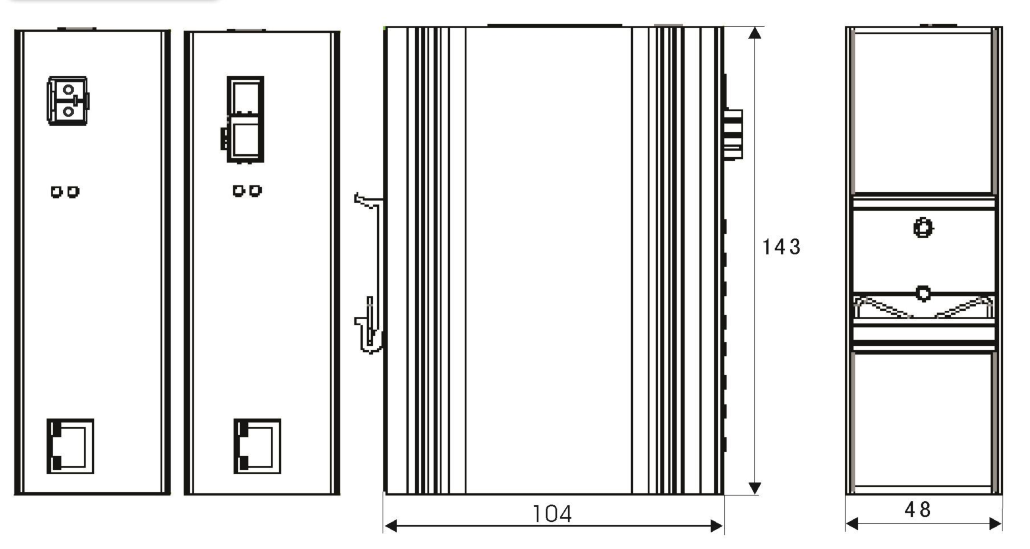

Dimension
Ordering information
|
Model |
Description |
|
G-IMC-1FX1TP-SC20S |
Unmanaged 1x10/100Base-TX POE+1x100Base-FX,SC,Dual Fiber,SM,20KM |
|
G-IMC-1FX1TP-SC20SA/B |
Unmanaged 1x10/100Base-TX POE+1x100Base-FX,SC,Single Fiber,SM,20KM |
|
G-IMC-1FX1TP-SFP |
Unmanaged 1x10/100Base-TX POE+1x100Base-FX SFP,without SFP transceiver |
